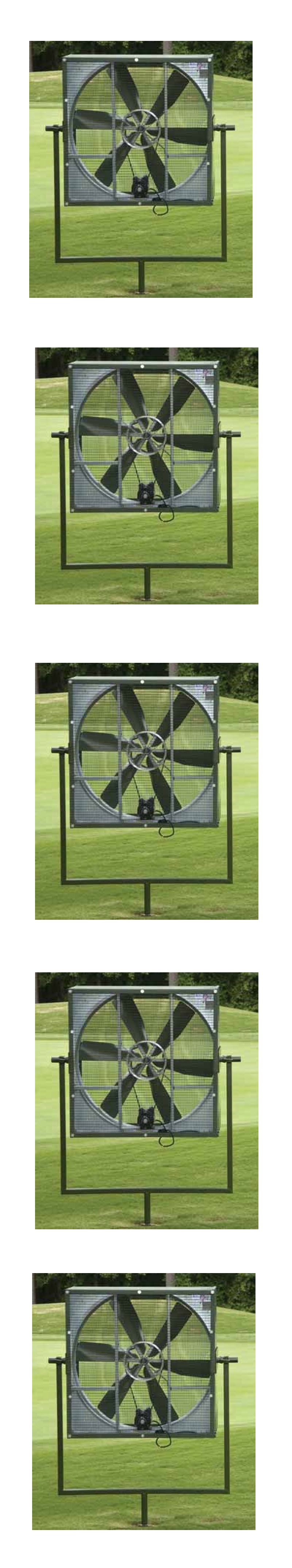

GreenKeeper Fan

GreenKeeper Fan Series: All GreensKeeper fans feature American Coolair’s unique blade design engineered for performance, durability, and whisper-quiet operation. The fan frame features a welded galvanized steel construction, and the fan unit is secured inside a heavy-duty epoxy coated steel housing. Each fan comes standard with PVC-coated steel guards compliant with OSHA standards on both the inlet and outlet. All fans are equipped with single-phase motors as standard. Three-phase motors are available. Voltage for single-phase motors may be specified for 115 V, 208 V, or 230 V. Three phase motors may be specified for 208 V, 230 V, or 460 V. American Coolair Corporation certifies that the performance data for the Type NCF fan models shown above are based on tests conducted in an accredited laboratory in accordance with ANSI Standard 230-99 for Circulation Fan Testing and ANSI Standard 300-08 for Fan Sound Testing.

GreenKeeper Fan Options:

Full Assembly: All GreensKeeper Fans can be ordered fully assembled at the factory for true “plug and play” convenience.

Epoxy Coating: Epoxy coating is standard for the fan housing. However, Coolair’s epoxy finish can be specified for the entire fan unit, including the fan panel and support angles. Parts are coated with Coolair’s thermosetting epoxy finish to an average thickness of 3 mils and baked at 400° F for a smooth, hard, continuous finish. Coolair’s standard dark green epoxy paint will compliment the natural colors of any course landscape.

Mounting Frame: A rigid frame constructed of welded steel tubing makes mounting and positioning your GreensKeeper fan a breeze!

Mobility Package: For ease in transport, or for use as a mobile cooler, GreensKeeper Fans units can be specified with the Mobility Package, which includes pneumatic wheels, swivel steering, and front and rear hitches.
