ILG Fans and Blowers manufactured by experts!

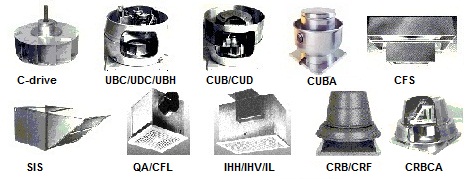

UBC, UBCA, UBCHD, UDC, UDCA, CUB, CUD, CUBA, CUDA - spun aluminum centrifugal upblast power roof ventilators in UL 705 and UL 762 grease extractor construction. Sizes: 6 to 44. Capacity: up to 30,000 CFM. Pressure: up to 3 inches of WG. Accessories: gravity shutter, motorized back draft damper, roof curb, grease box, disconnect switch, controls.
CFS, SIS: filtered air supply makeup air roof ventilators with side, or downblast discharge. Sizes: 9 to 2. Capacity: up to 10,000 CFM. Pressure: up to 1.5 inches of WG. Accessories: inlet transition, 2 inch filter, roof curb, motorized damper, controls.
CVV, CHV, QA, CFL, IL ceiling fans. Capacity up to 3000 CFM. Pressure: up to 1.5 inches of water gauge. Accessories: roof cap, wall cap, damper kit, wall kit, duct transition, speed controler.
CRD, CRDA, CRF, CRB, CRBCA, CRB: spun aluminum centrifugal downblast power roof ventilators. Sizes: 6 to 52. Capacity: up to 45,000 CFM. Pressure: up to 2.5 inches of water gauge. Accessories: gravity shutter, motorized back draft damper, roof curb, grease box, disconnect switch, controls.

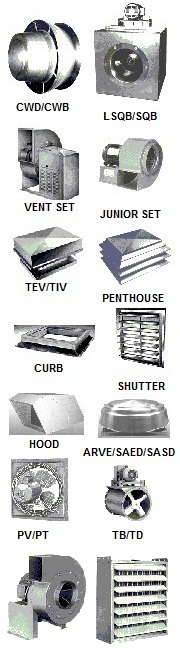

CWD, CWDA, CWB, CWBA: spun aluminum centrifugal wall ventilators. Sizes: 6 to 20 inches. Capacity: up to 6000 CFM. Pressure: up to 2 inches of water gauge. Accessories: gravity shutter, motorized back draft damper, wall flange, speed controller, controls.
LSQB, SQBA, SQB, SQDA, SQD: centrifugal in-line duct ventilators. Sizes: 6 to 36. Capacity: up to 25,000 CFM. Pressure: up to 2 inches of water gauge. Accessories: inlet guard, outlet guard, mount feet, inlet flange, outlet flange, duct connector, vibration isolation bracket, motor and drive cover, protective coatings, speed controller, controls.
BCM, VSBC, VSFC, VSAC utility vent sets and junior vent sets: VSFCJ, VSDDF, VSBCJUBC in UL 705 and UL 762 grease extractor construction. Sizes: 5 to 36. Capacity: to 30,000 CFM. Pressure: up to 10 inch. Accessories: inlet flange, outlet flanges, access door, drain, drain plug, shaft cooler, high temperature construction, shaft seal, motor cover, belt guard, spring vibration isolators, RIS rubber-in-share vibration isolators, outlet dumper, gravity shutter, adjustable speed drive, custom finish coating, disconnect switch, VFD drives, controls.
Trimline TEV, TIV: hoods and roof gravity ventilators. Custom sizes. Accessories: gravity automatic damper shutter, motorized damper, roof curb.
ARVE, SASD, SAED: - spun aluminum gravity ventilators. Sizes from 6 to 37. Capacity to 40,000 CFM. Accessories: gravity automatic damper shutter, motorized damper, roof curb.
Louverline penthouses and ventilators. Custom sizes.
