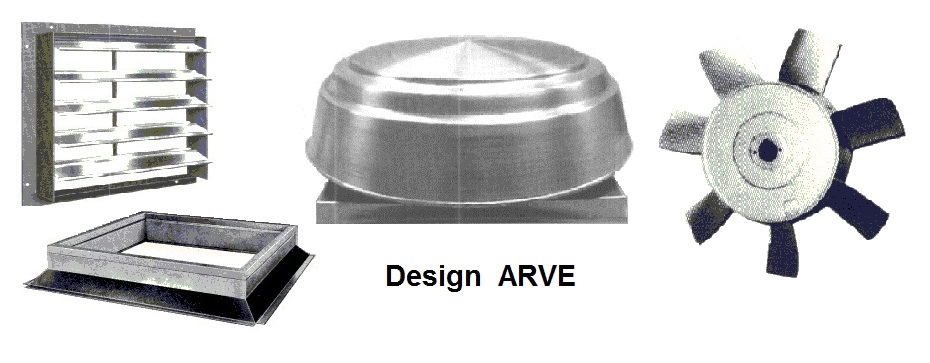

Type ARVE Relief/Intake Roof Ventilating Sets
APPLICATIONS: A low silhouette relief vent that is compatible with modern architectural lines and also matches ILG’s power roof ventilators. Units used for intake should be selected to maintain flow rates at or below the maximum intake velocity of 600 FPM to prevent entrainment of moisture. For intake units, a minimum curb height of 12” is recommended.
CONSTRUCTION:Round spun aluminum hood. Heavy gauge hood supports. Anti-vibration bird screen. Wide range of sizes for every need. Relief/intake ventilators shall have circular hoods of spun aluminum. Vents will be low silhouette to conform to present architectural styles, and will be compatible with power roof ventilators. Square bases will be constructed of aluminum. Vents will be equipped with galvanized mesh bird screen. Weatherproof heavy duty aluminum housing resists corrosion and maintains appearance. Deep-spun, one-piece venturi improves efficiency and minimizes pressure loses. Bird screen prevents entry of birds or other potentially damaging objects. All models are shipped fully assembled and ready for installation.
ASSECCORIES: Automatic or Gravity Operated Shutter, Prefabricated Roof Curbs, Back Drafts Dampers, Protective Coating, Insect Screen.

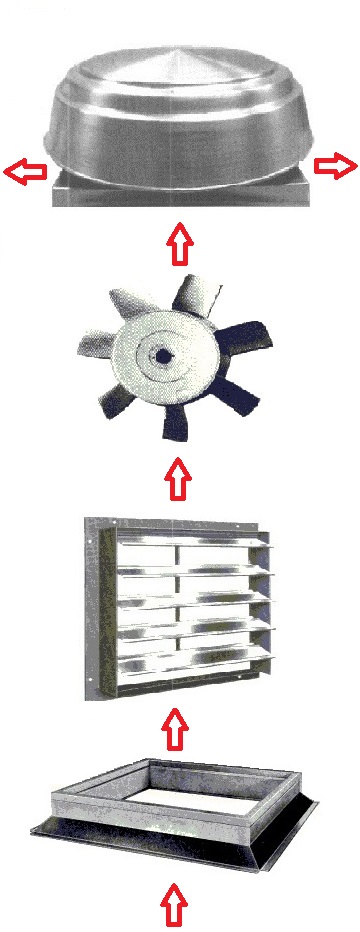

FEATURES: ARVE spun aluminum roof mounted motorless vent is supplied complete with a polypropylene BS bird screen, optional 6 mil EPX epoxy paint for corrosive atmosphere, optional IS insect screen designed to wrap around the outside of the bird screen, optional BDD back draft damper with counter-balanced spring assisted blades, which mounted inside roof curb on a damper shelf, designed for relief (exhaust), or intake (supply) application, supplied with motor kit for 115 V, 230 V, or 460 V single phase power supply. Standard roof curb PFC1 is 8” high, galvanized construction, self flashing design with 1-1/2” x 3 lbs density insulation.Automatic or Gravity Operated Shutter, Prefabricated Roof Curbs, Back Drafts Dampers, Protective Coating, Insect Screen.
CERTIFICATION:Type ARVE Exhaust/Intake Roof Ventilating Sets are certified by Underwriters Laboratory, Inc. to U.S. and Canadian safety standards. Certified ratings licensed by AMCA (Air Movement and Control Association International, Inc.), for both air and sound performance, as well as octave band sound power levels are available for use by the design and acoustical engineers.
