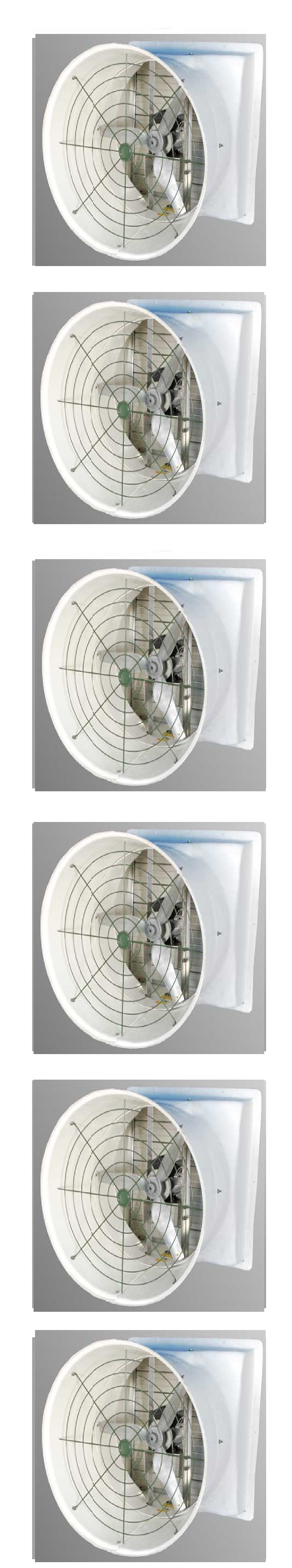

FGDC Fiberglass Farm Building Ventilation Fan
FGDC series of fiberglass ventilation fans feature molded fiberglass housing unit that ensures safety and efficiency of operation. The FGDC fans are supplied with cast aluminum airfoil blade assembly, all aluminum motor mounting frame and shutters to increase resistance to corrosion. These direct drive fans are designed for applications where a minimum of maintenance and economical operation are required. All fittings are stainless steel. The FGDC fan is offered from 16" to 36" fan sizes and is shipped completely assembled with Discharge Cone, Discharge Guard, and Inlet Shutter in the carton.
FGDC series fans manufactured by American CoolAir’s Farm Products Division feature an all-fiberglass housing with discharge cone, and a rugged, heavy-duty all-aluminum support frame, designed for optimum performance and corrosion resistance. Each FGDC model uses a cast aluminum airfoil blade assembly specifically engineered for maximum efficiency. A variable speed controller is an available option for all FGDC models. The controller allows motor speed adjustment from full to half performance, ideal for minimum ventilation applications, or wherever a precise flow rate is required. AMERICAN COOLAIR CORPORATION certifies that the performance data for the type FGDC fan models shown below is based on tests conducted in an accredited laboratory in accordance with ANSI/AMCA Standard 210-99. Standard fan accessories are:
SWH - Slope Wall Housing - The slope wall housing allows the shutter to be placed on the intake side of the fan and eliminates the air turbulence that occurs with the shutter on the exhaust side of the fan. It also prevents the warm air from being lost through the metal wall housing to the outside cold air in cold climate conditions. The SWH housing is constructed of moulded fiberglass for long, durable wear and low maintenance.
SWHCW - Slope Wall Housing with Discharge Cone - The addition of a discharge cone to the slope wall housing greatly increases the performance of the fan for a minimal initial investment. American Coolair’s discharge cones are specifically engineered to recover energy from the air stream, converting it into increased airflow (as much as 12%), while at the same time, reducing electrical power consumption. Cones are fiberglass and come with a concentric wire guard.
