American CoolAir Wall Panel Fans
FGS, FGDC, FGB & FGBC Fiberglass Fans:For the particular problems related to hog house confinement, Coolair offers FGS and FGB Fiberglass fans. Specially designed for hog house environments, the FGS is molded from a one-piece fiberglass housing unit that ensures safety and efficiency of operation. The FGS utilizes cast aluminum blades, an all aluminum motor mount and shutters to increase resistance to corrosion. These direct drive fans are designed for applications where a minimum of maintenance and economical operation are required. All fittings are stainless steel. The FGS fan is offered in 14”, 18”, 24” and 36” fan sizes and is shipped completely assembled with the shutter in the carton. For quieter operation and improved motor efficiency, the FGB Fiberglass belt driven fan is available in a 48” size. Molded from a two-piece fiberglass housing, the FGB utilizes formed aluminum blades, an all aluminum motor mount and shutters to increase resistance to corrosion.

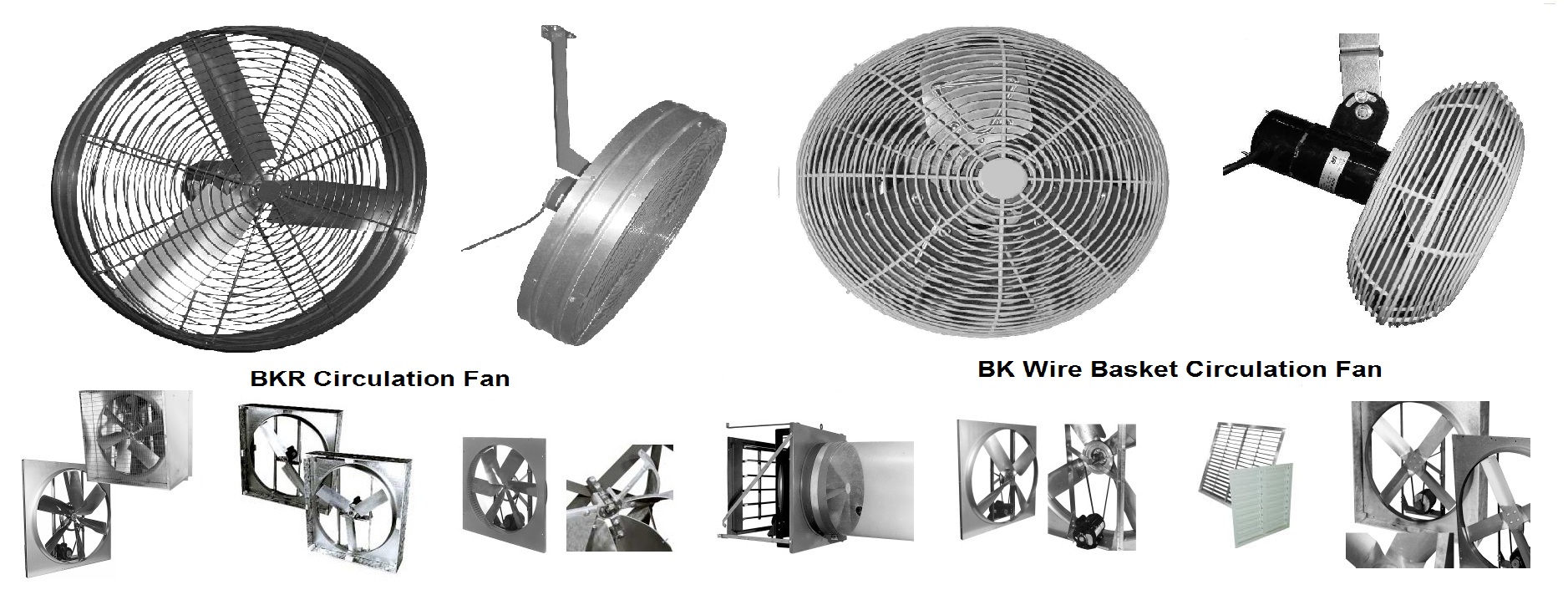

BKR Circulation Ring Fans: supplied with Coolair’s original specially designed galvanized steel blades directly mounted to totally enclosed motors, and encased in coated steel wire guards with a reinforced galvanized steel casing. Each BKB36 fan comes with a 1/4” painted steel rafter mounting bracket designed to easily mount to any structure. In livestock houses, proper air circulation provides even cooling and reduces livestock stress levels, increasing production. In greenhouses, proper air circulation helps plants grow better by increasing the amount of CO2 at the plant level and reducing condensation on plant surfaces, reducing the risk of disease.
BK Wire Basket Circulation Fan: Eliminate air stratification, reduce condensation, and eliminate hot and cold spots effectively and economically with American Coolair’s Type BK fans. These fans feature aluminum propellers directly mounted to totally enclosed motors, and encased in coated steel wire guards that comply with OSHA standards. Each BK fan comes with a rafter hanging kit designed to easily mount to a “2-by” wooden beam or up to 2-1/8” metal tubing as standard. Wall and ceiling mounting brackets, as well as chain kits, are also available to install the fans virtually anywhere in the building. In greenhouses, proper air circulation helps plants grow better by increasing the amount of CO2 at the plant level and reducing condensation on plant surfaces, reducing the risk of disease. In chicken or other livestock houses, proper air circulation provides even cooling and reduces livestock stress levels. In general, the amount of horizontal airflow needed is 2˝ to 3 CFM per square foot of floor space. Use the fans whenever the house exhaust fan system is not operating at full capacity. Horizontal airflow fans should be installed between 6’ and 10’ high, but no less than 1’ from the roof. Fans should be placed above the top of the crops or livestock to be cooled.
Automatic Heat & Smoke Venting is a spring operated arm that will open damper/shutter when activated by excessive heat by fusible link with melting temperature of 165 F. UL listed.
